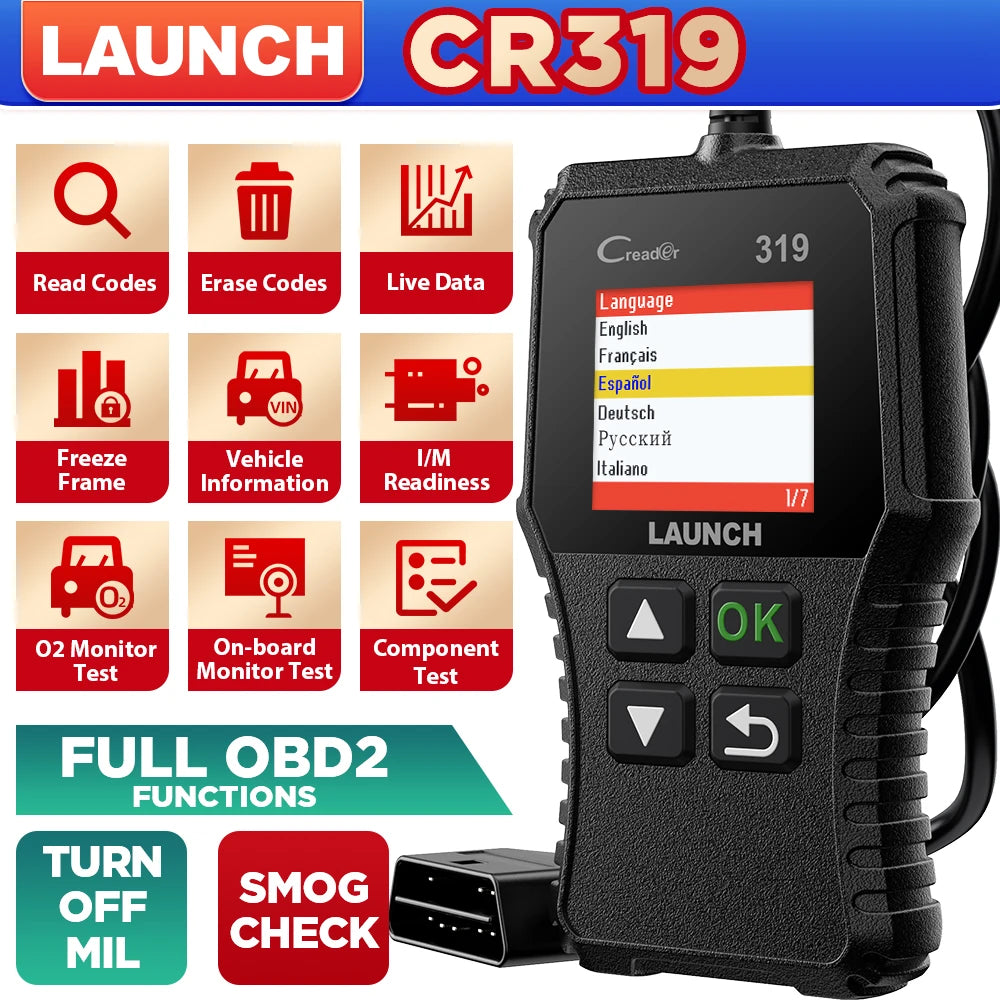

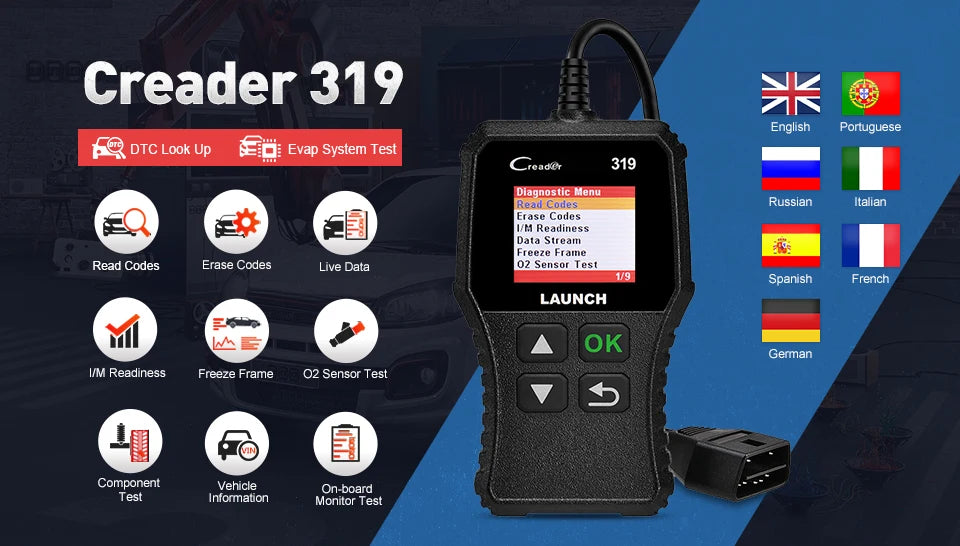

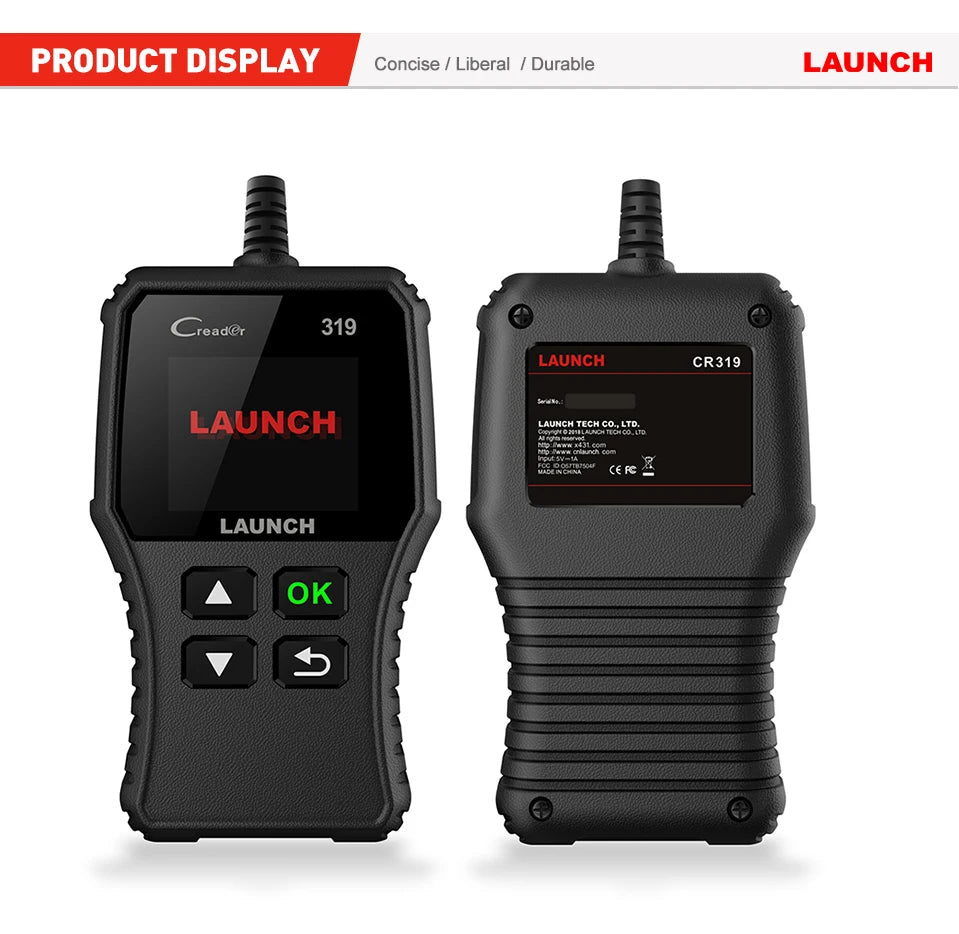

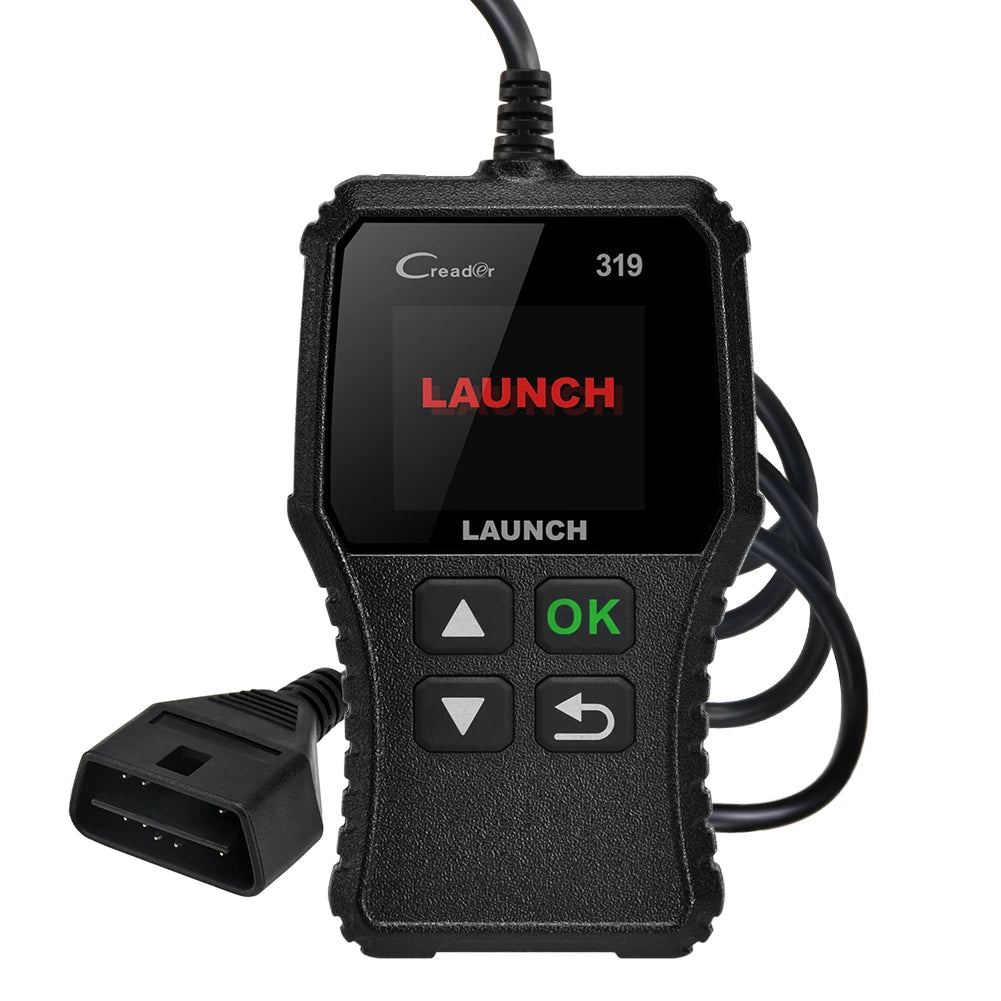

LAUNCH CReader 319 DIY OBDII Scanner for Engine

[Full OBDII Functions]

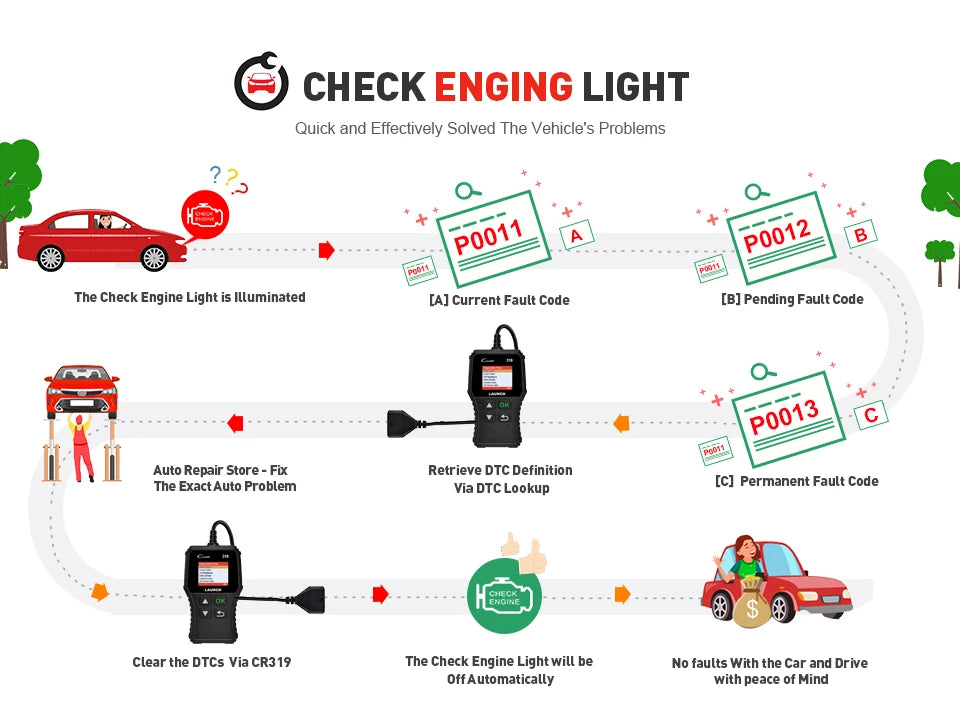

1.Read/Clear engine error codes

Turn off 'Engine Check' MIL.

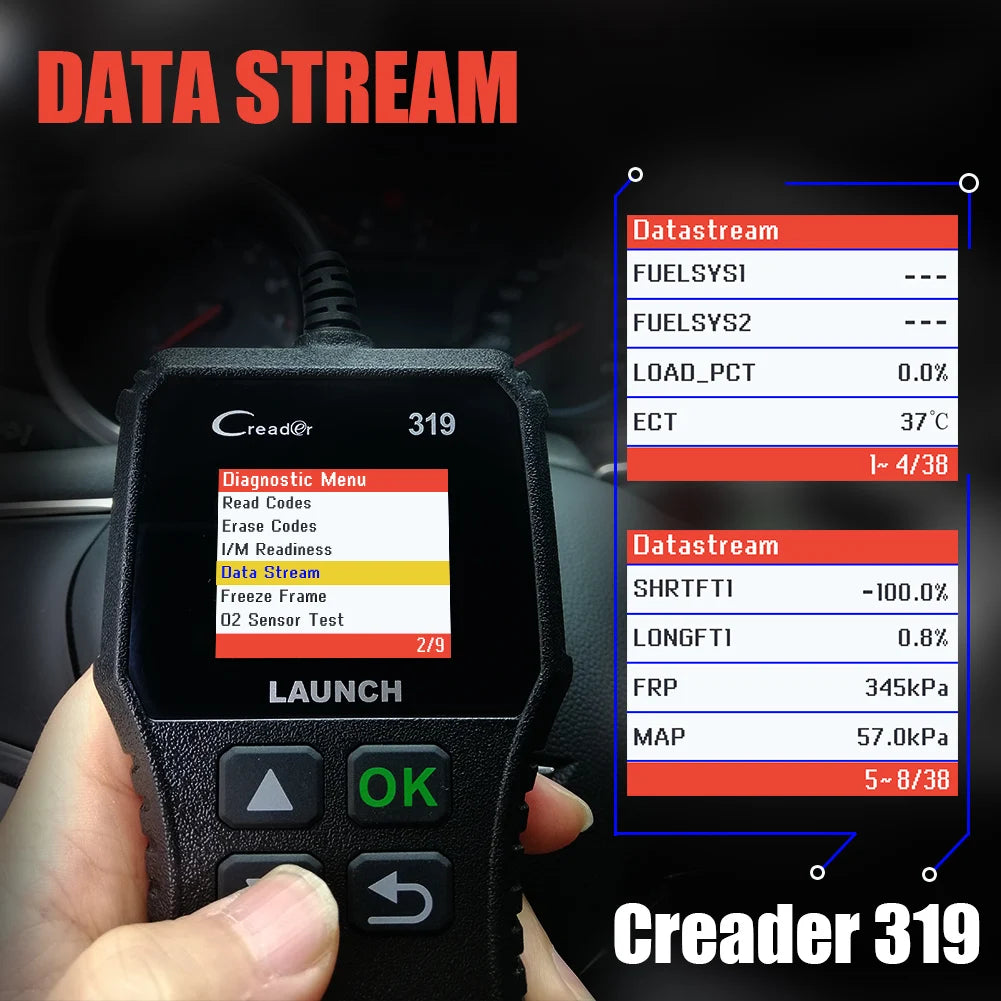

2.Live Data/Freeze Frame

--- When emission-related faults occurs, certain vehicle conditions are recorded, so it can better locate the abnormal position and find the cause of the abnormality when it is repaired.

3.I/M Readiness

--- It indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.

4.VIN Code Reading

It can reading the VIN code from the car ECU (some cars ECU not support this functions)

5.Hard(memory) Codes Reading

6.Pending Codes Reading

7.Oxygen Sensor Test

CR319 allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.

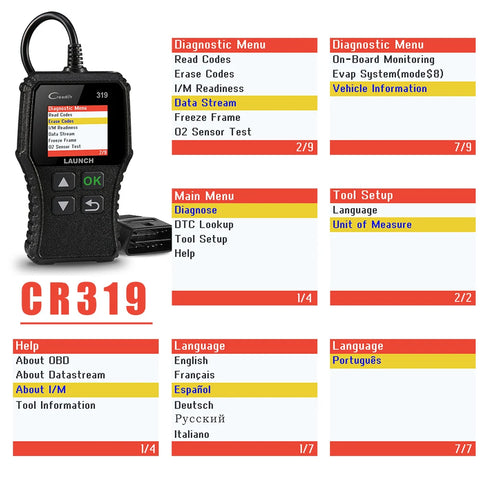

[Functional All Modes of OBDII Diagnostics]

This tool works on MOST OBDII/CAN protocol compliant 1996 US-Based, 2000 EU-Based and Asian cars. It can check all engine related trouble codes from Vehicle ECU (Electronic Control Unit) via check engine light, I/M monitor readiness test, view live data, view freeze frame data, read and clear codes etc, which is to say, it gets the complete 10 modes of OBDII test for technicians to diagnose the trouble fast and accurately as follows:

Mode 01: Request current power train diagnostic data.
Mode 02: Request freeze frame information.
Mode 03: Request emissions-related diagnostic trouble codes.
Mode 04: Clear/reset emissions-related diagnostic information.
Mode 05: Request oxygen sensor monitoring test results.
Mode 06: Request on-board monitoring test results for specific monitored systems.
Mode 07: Request emission-related diagnostic trouble codes detected during current or last completed driving cycle.
Mode 08: Request control of on-board system, test or component.
Mode 09: Request vehicle information.
Mode 0A: Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information service.

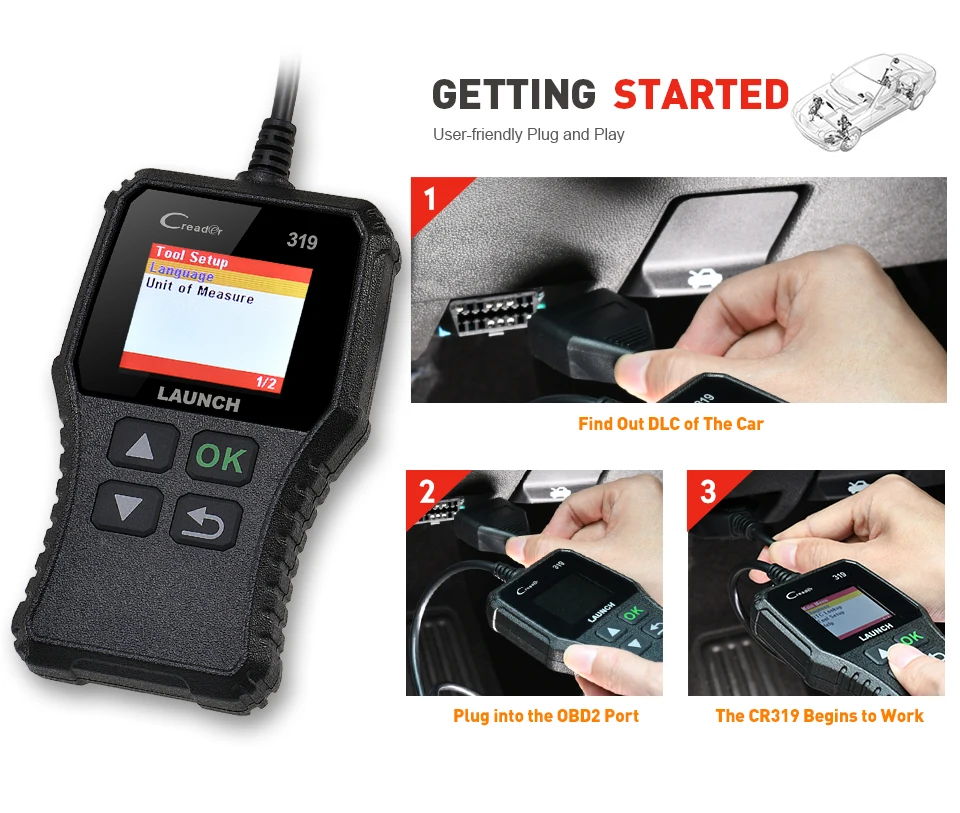

[Plug and Play]

1.Plug into the car OBD2 16pin port
2.Start the engine (ignition), the tachometer will point around 0.7

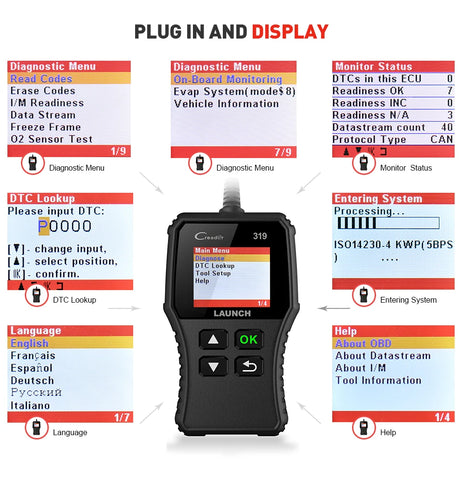

3.Chose the diagnostic menu as you want

If you have any question, pls kindly contact us.
LAUNCH CR319 is a plug-and-play OBD2 code reader without any batteries or APPs. Just plug the 16-pin OBD cable into the car’s DTC (16-pin OBD Port) and turn on the ignition, this code reader will automatically recognize the car and get power from the test car directly

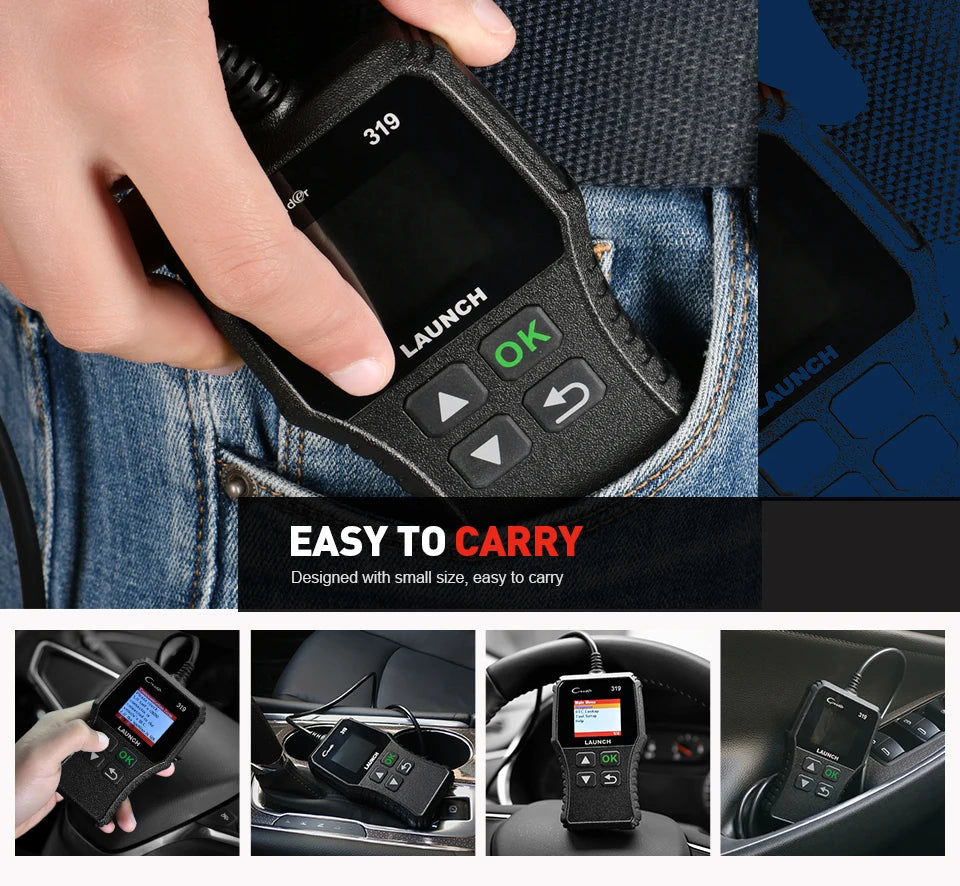

[Small Size and Easy to Carry]

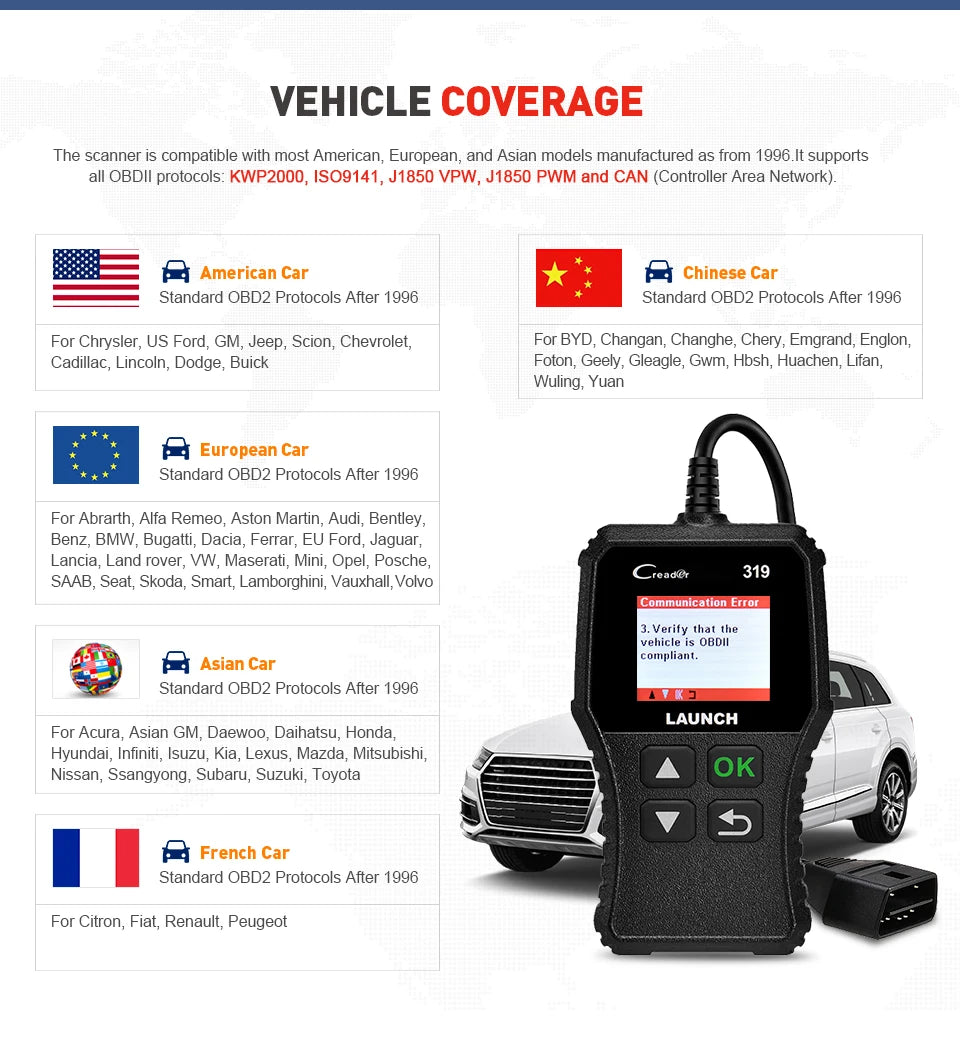

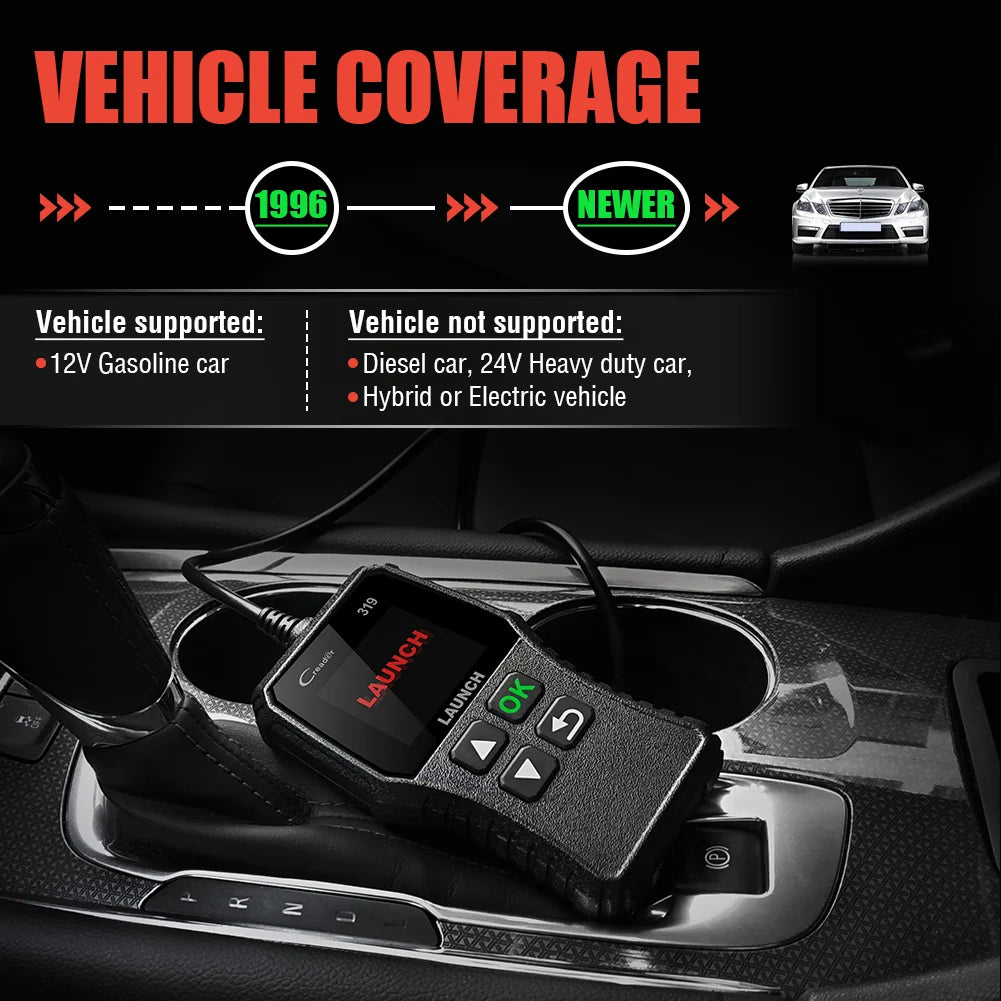

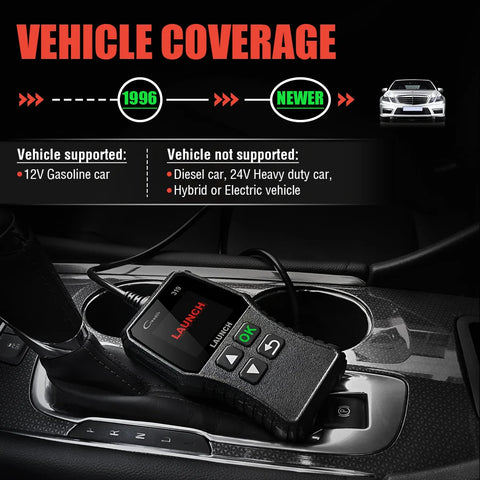

[Car Coverage List]

American Car:

Need Standard OBD2 Protocols from 2000 to now
for Chrysler , for Ford, for GM, For Jeep ...

European Car:

Need Standard OBD2 Protocols from 2003 to now
For Alfa romeo , for SAAB ,for Acura , for Opel , for Audi for Seat , for Peugeot , for Renault
For Bentley , for Skoda , for Daewoo , for Benz , for Daihatsu , for Land Rover , for BMW , for Vauxhall , for Citroen , for Volvo , for Fiat , for VW , for Ford , for Jaguar...

Japanese/Korean Car:

Need Standard OBD2 Protocols from 2006 to now
for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai , for Dacia , for Lexus , for Mazda, for Nissan, for Subaru , for Suzuki, for Toyota...

Chinese Car:

Need Standard OBD2 Protocols from 2009 to now

NOTE: Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is spercial design, so it may not compatible with some cars which do not support OBD2 protocol.

Support OBDII protocols cars:

1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)

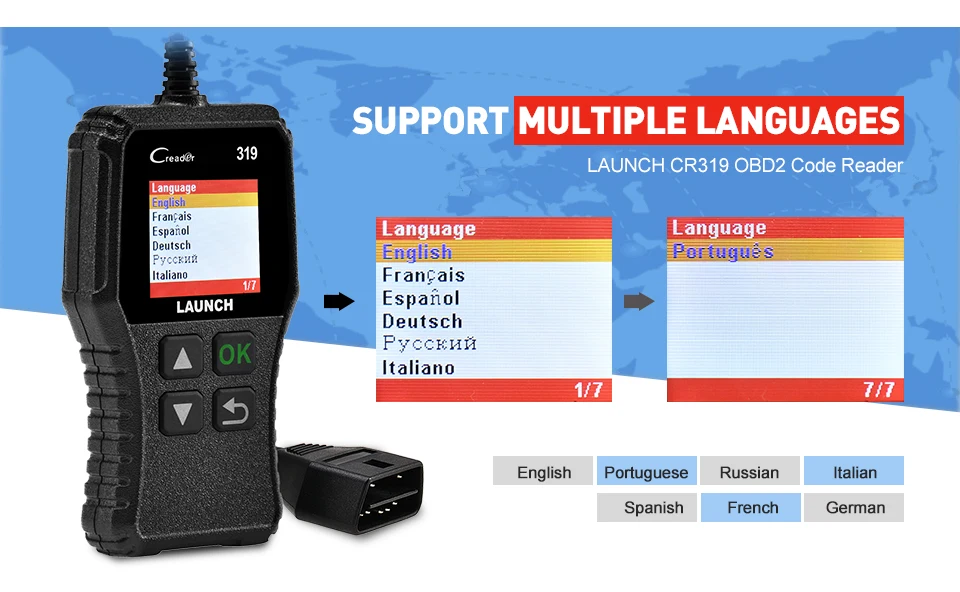

[Support Languages(7 kinds)]

English ,French ,Russian ,Spanish ,German, Italian ,Portuguese

How to change languages?
Main Memu --Tool Setup -- Languages

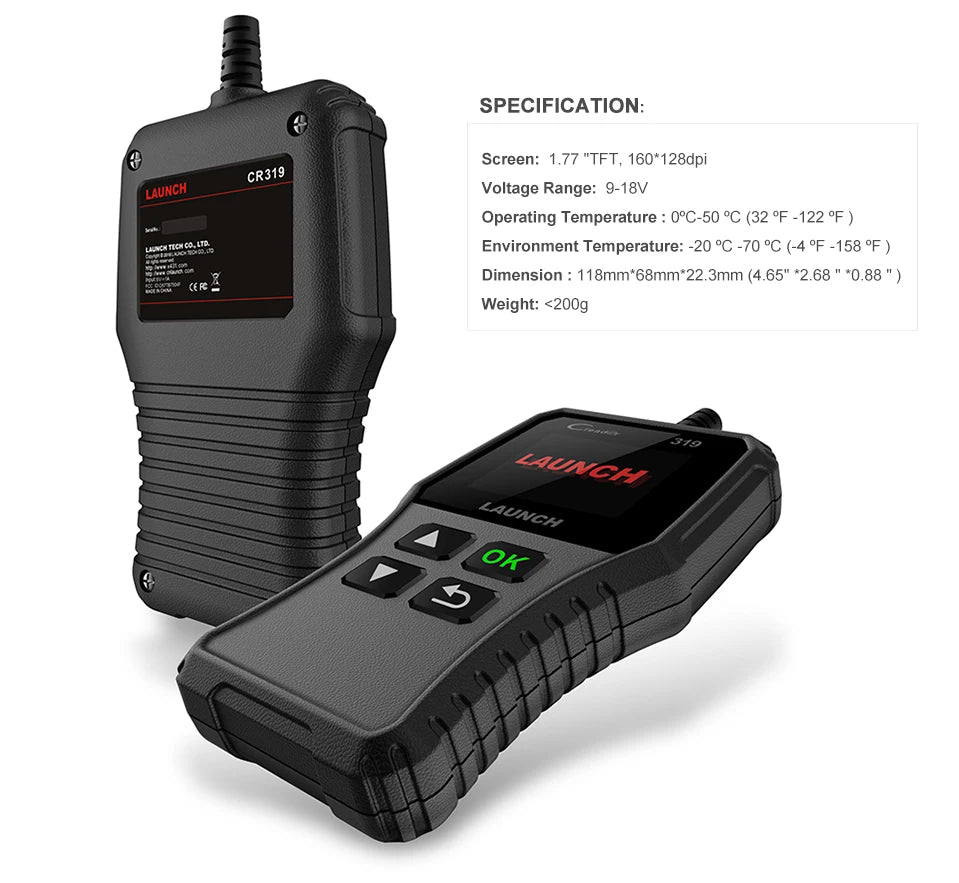

[Specifications]

Display: 1.77 Color Display
Operating voltage: 9~18V
Storage Temperature:-20℃~70℃ (-4℉~158℉)
Working Temperature:-10℃~50℃ (14 ℉ ~122℉)

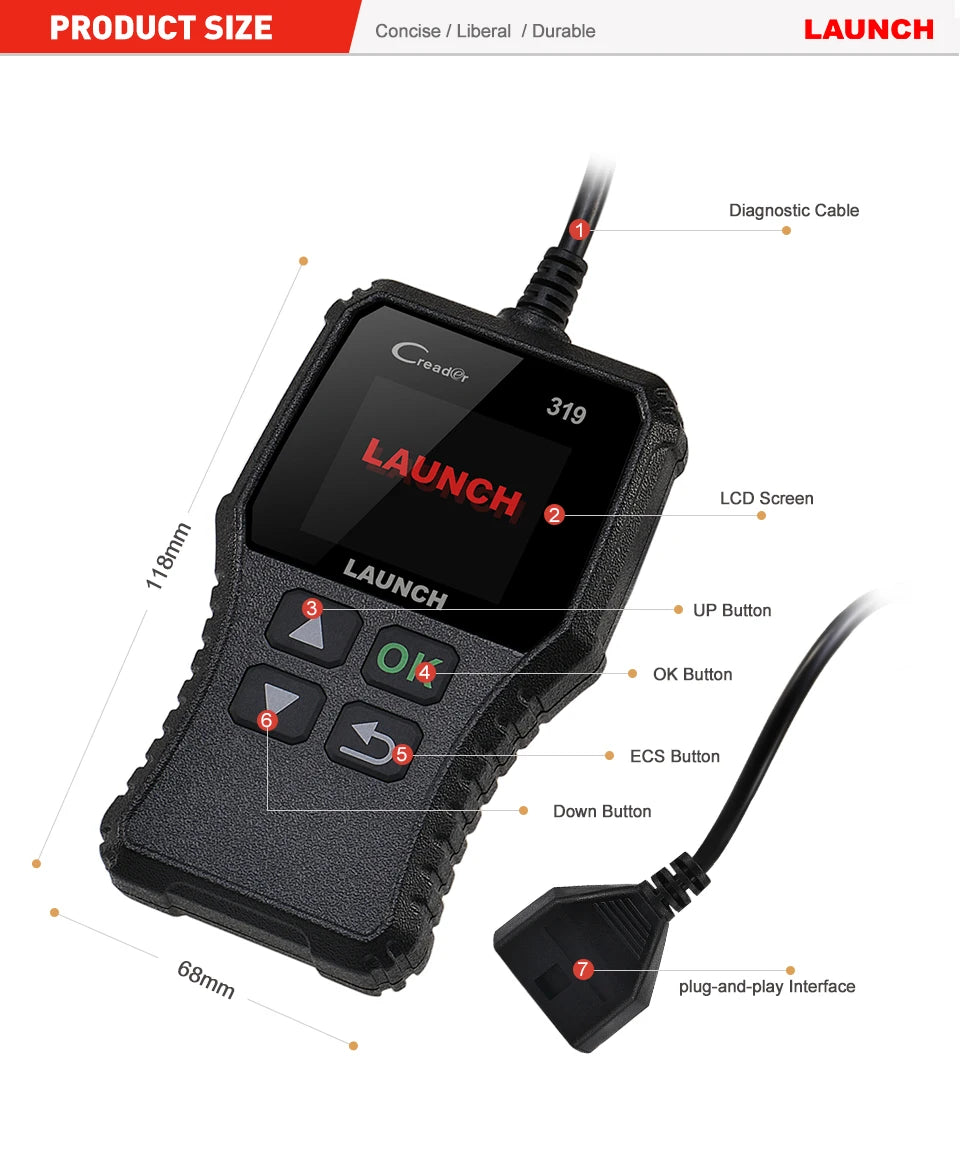

Dimension:120*65*20 mm(4.72*2.55*0.79 inch)
Package size:210*153*27.5 mm(8.26*6.02*1.08 inch)
Length: 975 mm(38.38 inch)
Net Weight: 170g(5.99 oz)
